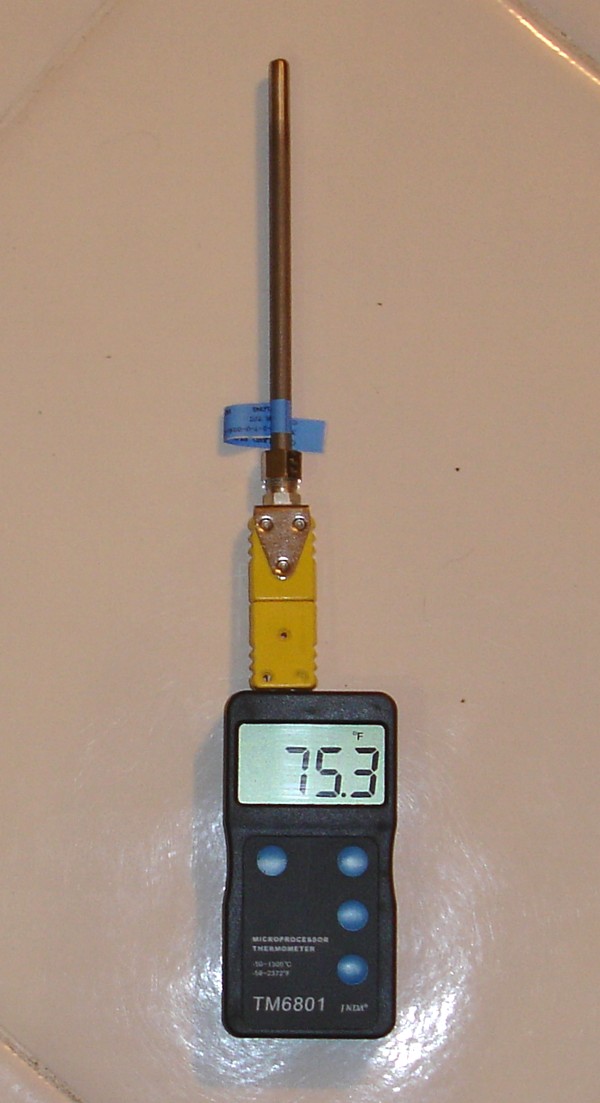

Pyrometer and a 5/16 inch diameter MGO type K temperature probe  Thermocouple that can be used for measuring the temperature of reduction atmospheres up to 1300 °C or 2350°F.

It also has a 0.1 degree high resolution mode for low temperature applications. The display in either Celsius or Fahrenheit temperatures. Units has simple pushbutton use and easy to read large LED display.  The meter is powered by one 9V battery (included).

Specifications

Pyrometer Meter :

Four digits, 0.8" (20 mm) large LCD display.
Display in either °C or °F.
Input sensor type: K type thermocouple
Display range: For 1 degree resolution: -50-1300 °C,-58-2373 °F.
For 0.1 degree resolution.-50.0 to 599.9 °C -58.0 to 999.9 °F
Over range display: Hi or Lo.
Sampling rate: 16 times/second
Storage condition: 0-50°C (32-122°F), <80%RH.
Battery type: 9V battery life: 300 hr for alkaline battery. 150hr for heavy duty battery.

Size: 5x2.5x1" (130cx65x23 mm)
Weight: 125g (including battery).
Accuracy: +/- 0.5% of full scale + 1 digit.

Probe Included

Transition style MGO with Inconel 600 body.
Working temperature range -50-1300°C, -58-2373°F.
Probe diameter, 0.3125" (8 mm)
Probe length. 6" (150 mm)

Probe options

1) 6" (150 mm) long, 2000 °F maximum temperature probe. Deduct $ 20.00
2) 10" (250 mm) long, 2000 °F maximum temperature probe. Deduct $ 15.00
3) Ceramic insulated 12" (300 mm) long  probe 1300 °C ( 2373 °F) Deduct $ 10.00
4) Ceramic probe plus ceramic sheath for gas oven 1300C. Deduct $ 0.00

   The MGO with the 5/16"Inconel 600 body is standard and is the best vaule

We are Fallonator™, if you still want something different we will get it for you.
Want a probe length of 24” or a 25 foot flex cable to run to another room?
This is what we do, can we do something for you.
